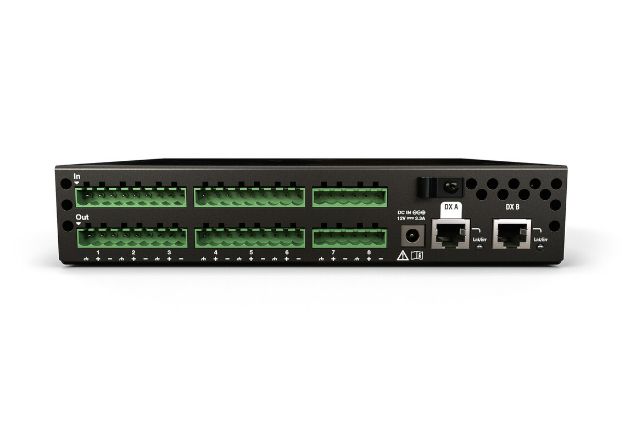

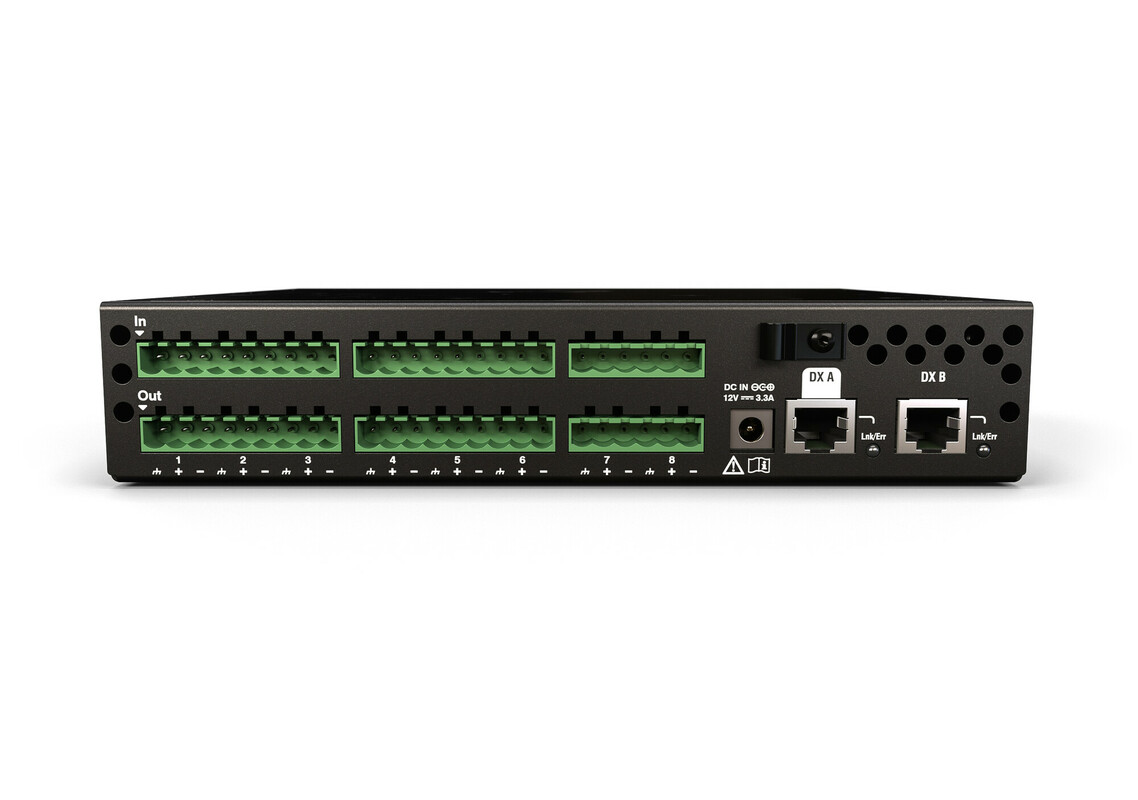

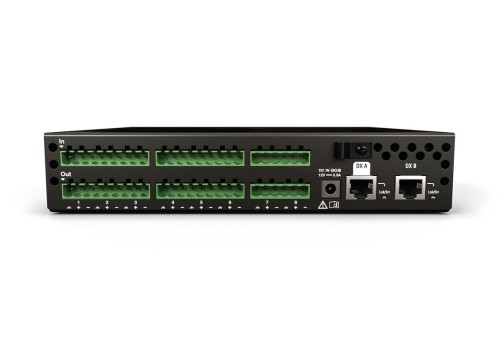

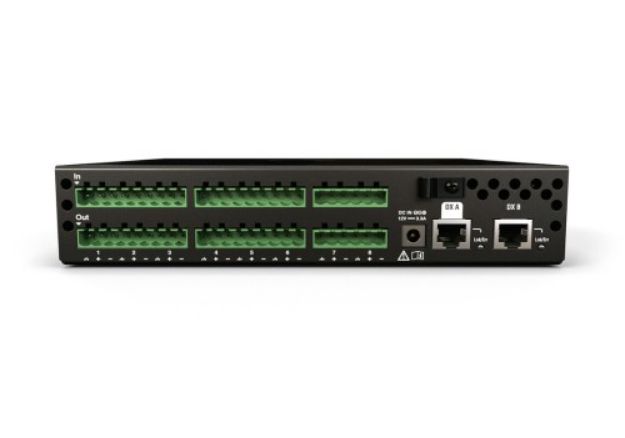

The DX88 provides 8 remotely controlled mic/line inputs and 8 outputs on Phoenix / Euroblock connectors and is an easy way to add local or remote expansion to AHM matrix processors or SQ, dLive and Avantis mixers. The form factor is ideal for fixed installation and perfectly complements the built in I/O of an AHM-16 or AHM-32 processor in applications where additional analogue I/O is required. The expander connects via a single Cat5e cable to the audio processor, mixer or upstream DX Expander. Any 2 DX Expanders can be daisy chained on each DX or SLink port, for example, a DX88-P for fixed I/O and a second DX88-P, portable DX168, or wall mount DX164-W in a separate room. An optional rack mount kit is available for installing a single DX88-P, or two DX88-P expanders, in a single 1U rack space
Features
• Compatible with AHM, SQ, Avantis and dLive systems
• 8 Phoenix / Euroblock Inputs with recallable 5-60dB gain, Phantom power and 20dB PAD
• Phoenix / Euroblock Outputs
• Cascade mode
• Multiple DX88-P can be added to a system (up to 8 units on a single DX Hub)
• Plug and Play – no IP addressing required
• Compatible with CAT5e (or higher) cables of up to 100m
• Compatible with dLive, Avantis, SQ and AHM
• 8 Mic / Line Inputs on Phoenix euroblock connectors
• 8 Outputs on Phoenix euroblock connectors
• +48V phantom power
• DX A connection with Ethernet port
• DX B port for daisy chaining
• DC 12V powered
• Optional rack mount kit available DX88P-RK19
Technical specs
Inputs Outputs
Mic / Line Inputs Balanced Phoenix, +48V phantom power
Analogue Outputs
Mic / Line Preamp Fully recallable Output Impedance <75O
Input Sensitivity -60 to +15dBu Nominal Output +4dBu = 0dB meter reading
Analogue Gain +5 to +60dB, 1dB steps Maximum Output Level +21dBu
Pad -20dB Active PAD Residual Output Noise -92dBu (muted, 20-20kHz)
Maximum Input Level +30dBu (PAD in) -90dBu (muted, 20-40kHz)
Input Impedance >4kO (Pad out), >10kO (Pad in)
Mic EIN -127dB with 150? source Operating Temperature 0 deg C to 40 deg C
Sample Rate 96kHz
Power 12V DC via external PSU, 3.3A max, 39.6W max
Dimensions and Weight Width x Depth x Height x Weight
216.5 x 195.4 x 42.8 mm x 1.51kg
