24 faders, 6 layers
Fully assignable layout – up to 144 fader strips
Harmony UI integrates screen and wrap around controls
2 x 12” capacitive touchscreens
Gesture control – pinch, swipe, drag ‘n' drop
Dedicated multi mode EQ view
Configurable widget areas for Scenes, meters, FX and more
3 pages of 6 assignable rotaries
19 assignable SoftKeys
Engineer’s Wedge and IEM fader strips
Comprehensive multipoint metering
Daylight visibility
USB stereo recording and playback
6 XLR mic/line in, 6 XLR line out
1 digital st AES3 in, 1 digital st AES3 out
Connection hub
1 x GigaACE gigabit link to MixRack
1 x DX link for I/O expansion
1 x I/O Port – 128 ch 96 kHz
2 x Network ports
Wordclock BNC I/O
Video output

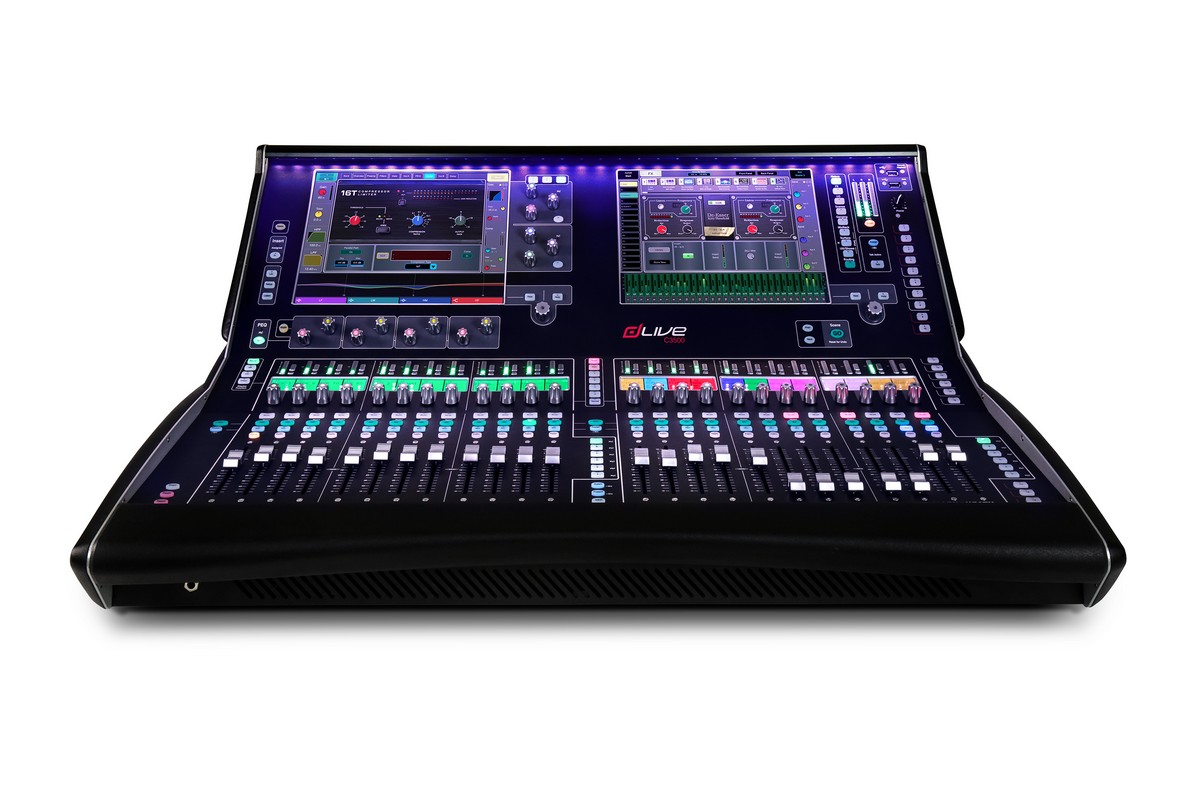

C3500
Height 325mm
Length 665mm
Width 885mm
Weight 28kg
