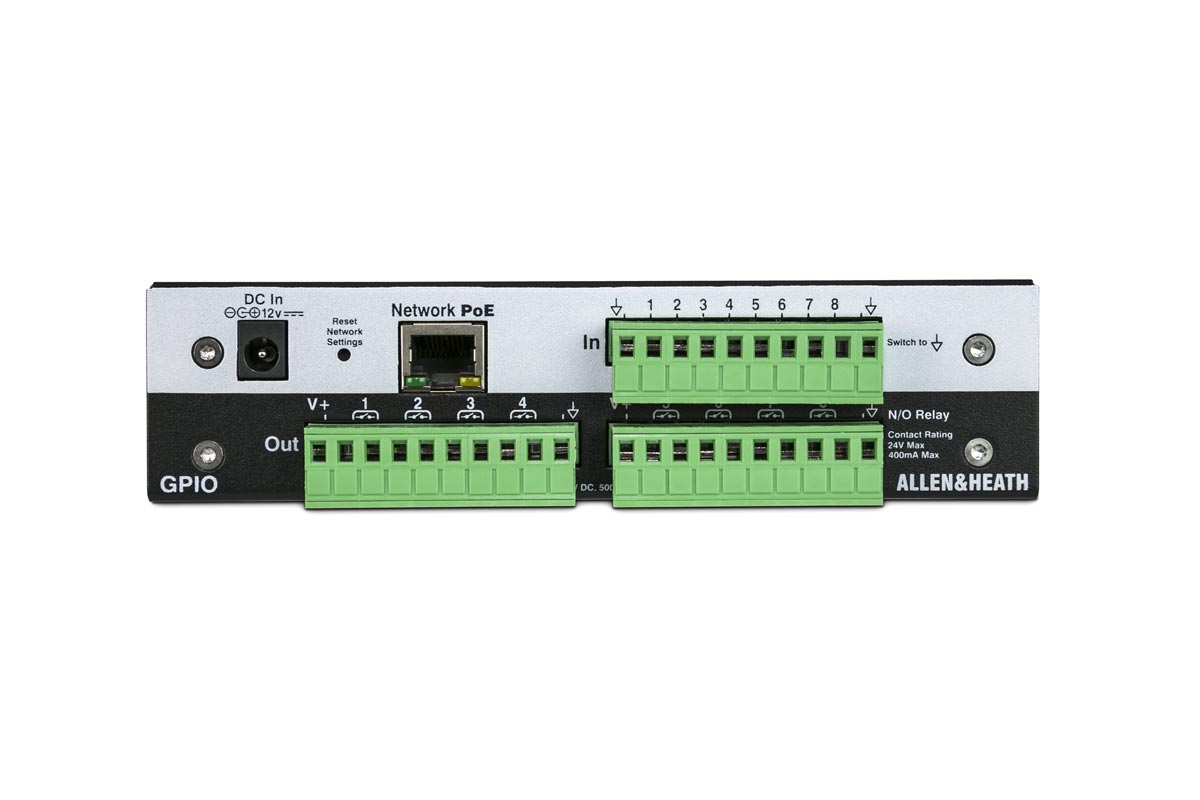

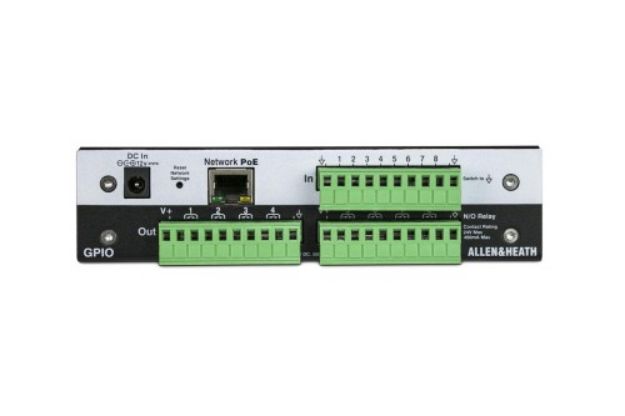

GPIO is a general purpose IO switching interface for control integration of a dLive system and 3rd party hardware, offering 8 inputs, 7 normally open (N/O) relay outputs and 1 switchable normally open (N/O) or normally closed (N/C) relay output on Phoenix connectors in addition to 2x +10V DC outputs. The unit can be installed in a 19” rack (1u / ½ width) or can be operated freestanding, and up to 8 GPIO modules can be connected to a dLive system - directly or via a 100Mb/s network switch using Cat5 cable. GPIO functions are programmed using a dLive Surface or dLive Director software for PC/Mac and can be configured for a number of install and broadcast applications, including EVAC alarm / system mute), broadcast (on air lights, fader start logic) and theatre automation (curtains, lights)
Features:
• Up to 8 GPIO units can be added to a dLive system
• Cat5 connection to dLive MixRack or Surface (<100m)
• 8 inputs featuring opto-isolation for resilience
• 7 normally open (N/O) relay outputs
• 1 switchable normally open (N/O) or normally closed (N/C) relay output
• Industry standard Phoenix connectors
• Freestanding or rack-mount (1u / ½ Width) operation
• PoE (IEEE 802.3af-2003) compliant
• IO parameters configured via Surface or Director
• Two 10V outputs (500mA max)
