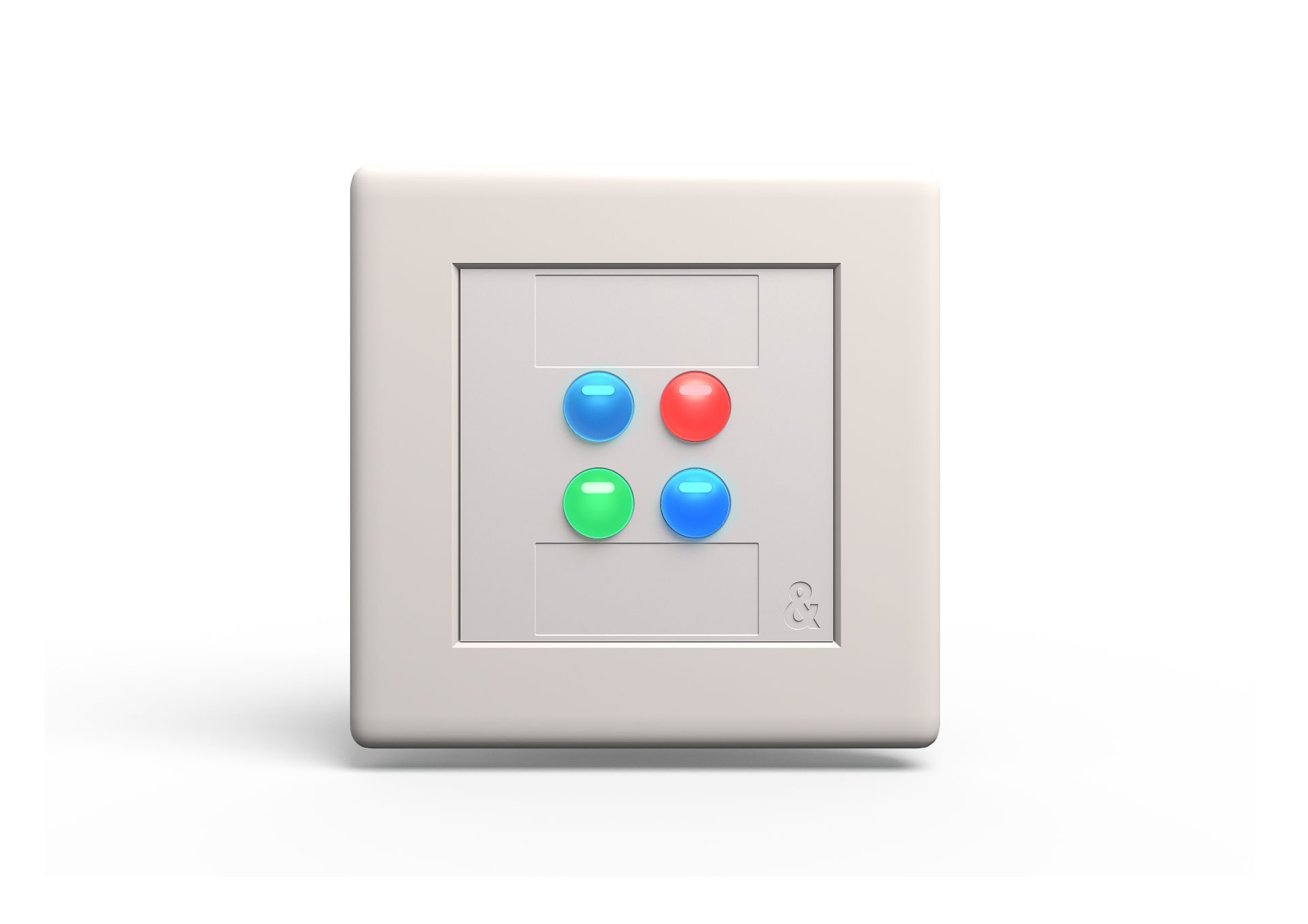

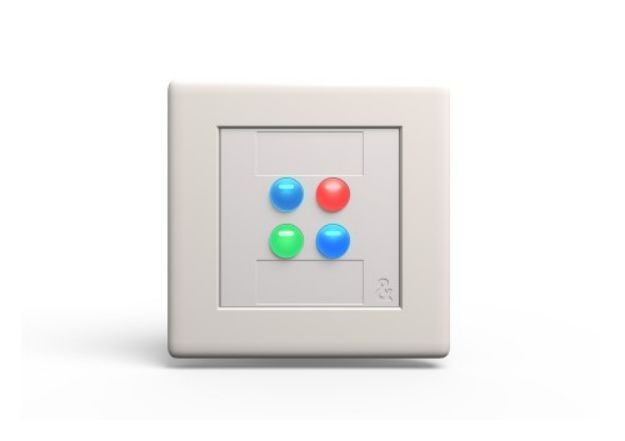

IP4 is a simple programmable wallplate, giving the non technical user convenient, easy control via 4 illuminated buttons
IP4 is compatible with Decora and MK Elements faceplates
Designed with the non technical user in mind, and can control zone level, source selection, mutes, level adjustment, scene/preset recall, and more
The IP4 automatically matches firmware with connected devices for easy install and system maintenance
Simple to Set Up
• Connect
IP4 interfaces with the AHM, Avantis or dLive mixing system via standard TCP/IP Network connections and can be networked with other controllers, computers and third party devices using a standard Ethernet infrastructure.
• Configure
IP4’s controls and functions are configured using AHM System Manager, Avantis Director or dLive Director software (PC or Mac), or via an Avantis mixer or dLive Surface.
Features:
• Four Illuminated Configurable Buttons
• Control source selection, mutes, level control, or preset recall
• TCP/IP & POE compliant
• Two form variants
• US (Decora compatible)
• EU/UK (MK Elements compatible)
• Face plate not included (can be ordered separately for EU variant)
