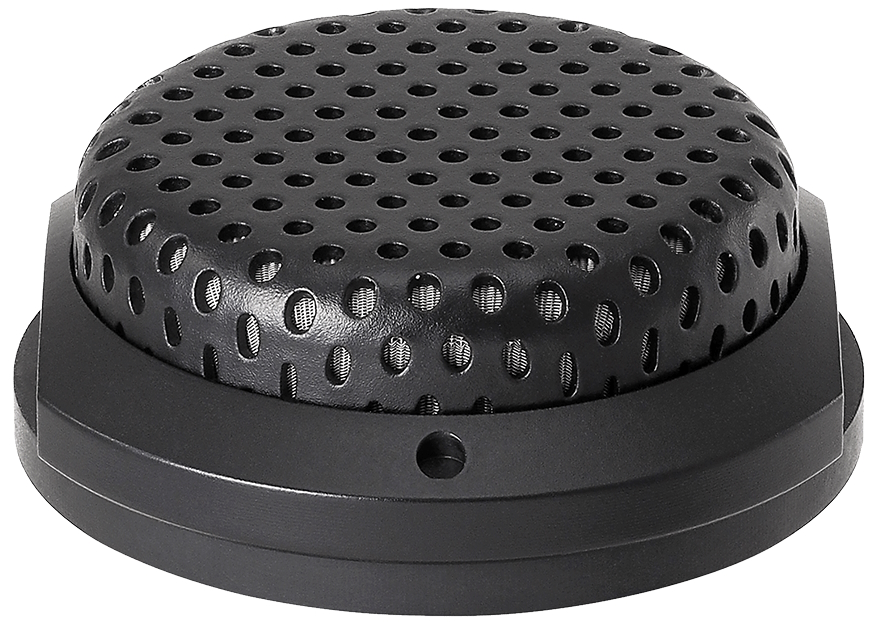

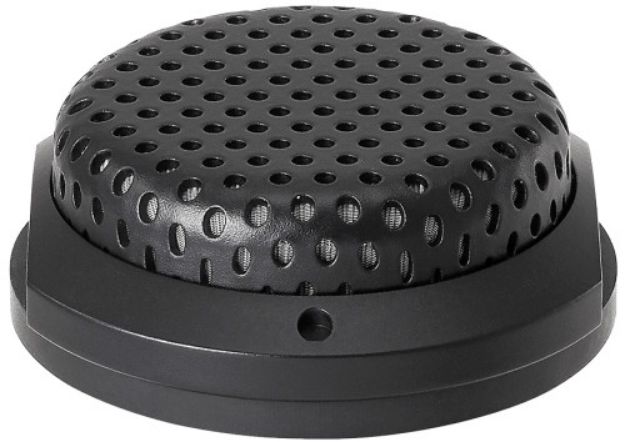

With its low profile design that mounts unobtrusively in tabletops, ceilings or panels for minimum visibility, the ES947C/XLR cardioid condenser boundary microphone provides clear, highly intelligible audio that is perfect for conferencing, recording, monitoring and other demanding sound pickup applications
Designed for surface mount applications such as conferencing, recording, monitoring and other demanding sound pickup applications
Low profile element provides uniform cardioid polar pattern with 120° acceptance angle
Mounts unobtrusively in tabletops, ceilings and panels
IPX4 water resistance protects the microphone from splashes of water
Self contained power module with XLRM type output connector
Rugged all metal case with a two layer perforated grille
Rubber Isolators provide mechanical dampening of mounting surface vibration
Requires 11V to 52V DC phantom power
UniGuard® RFI shielding technology offers outstanding rejection of radio frequency interference (RFI)
Available in two colours: black (ES947C/XLR) and white (ES947WC/XLR)
RoHS compliant—free from all substances specified in the EU directive on hazardous substances
Microphone
Element Fixed charge back plate, permanently polarized condenser
Polar Pattern Cardioid
Frequency Response 70-8,500 Hz
Open Circuit Sensitivity -37 dB (0 dB = 1V/Pa, 1 kHz)
Output Impedance 100 ohms
Maximum Input Sound Level 134 dB SPL (1 kHz at 1% THD)
Dynamic Range 110 dB (1 kHz at max SPL)
Signal to Noise Ratio 70 dB (1 kHz at 1 Pa, A-weighted)
Phantom Power Requirements 11-52V DC, 2 mA
Weight 62 g (2.2 oz)
Dimensions 26.0 mm (1.02") W x 30.0 mm (1.18") D x 69.0 mm (2.72") H
Output Connector 3 pin XLRM type
Accessories Included Rubber isolator (x 2), nut
