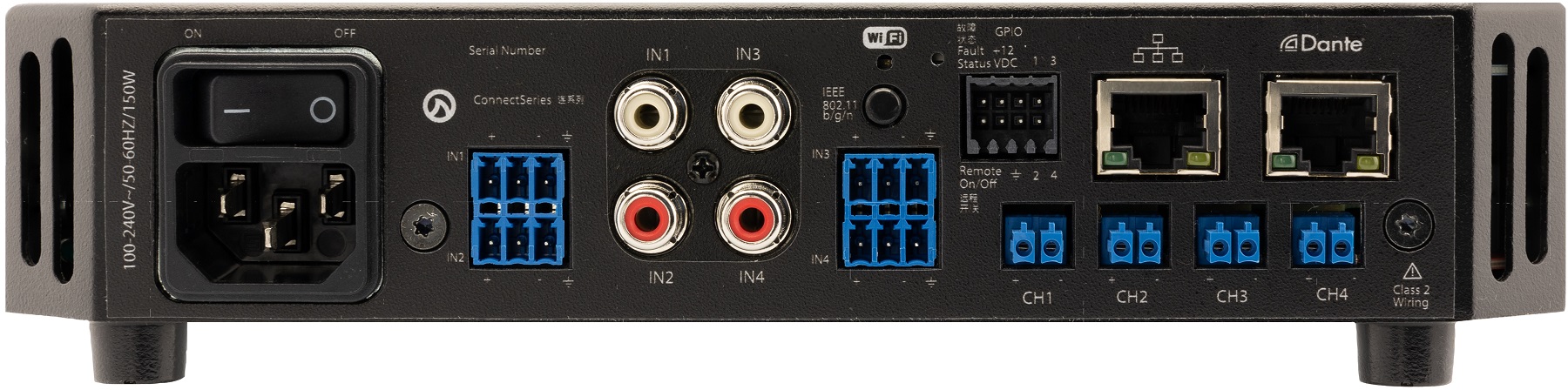

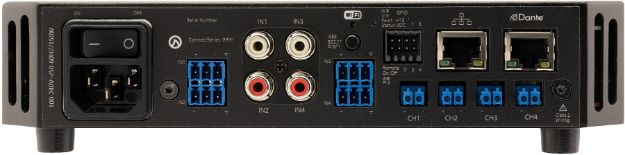

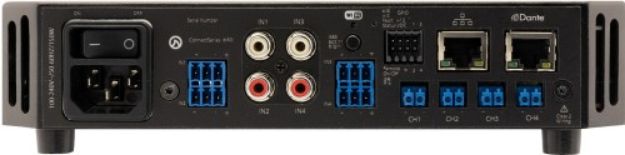

Output Power 4 x 60 WRMS @ 4Ohm, 8Ohm, 70V, 100V (30W at 2Ohm)
AUDIO SPECS
Inputs : Analog: 4 Balanced analog Inputs with user selectable 26dB, 34dB, and mic level input sensitivity 4 Unbalanced RCA inputs with user selectable 26dB and 34dB input sensitivity ***Note – Unbalanced and RCA inputs share the same analog input channel Dante: 4 x 4 Dante at 48kHz, Multicast, or Unicast AES 67: Configurable via the Dante Controller Software THD+N 0.1% (20Hz to 20kHz) Frequency Response +/- 0.5 dB @ 4Ohm, 8Ohm, 70V, 100V, -2.5dB @ 20kHz at 2Ohm Signal to Noise Level 102dB (20Hz to 20kHz referenced to 8Ohm) Crosstalk 70dB (20Hz to 20kHz) I/O Latency 1 ms DSP latency under any condition Load Impedance LowZ down to 2 ohms, 70V direct, and 100V Direct per channel Output Classification Class D with Proprietary Smart Power Bridge Technology allowing bridged output functionality without sacrificing an amplifier channel DC Offset +/- 3mV DSP DSP Architecture Analog Devices Sigma 96kHz DSP Processor with 32-bit Core with Sample Rate Converters Input Matrix Routable matrix; any input to any output with primary and secondary input priority Crossovers Up to 48 dB/Octave IIR Filters (Linkwitz Riley and Butterworth) and Bessel Parametric EQ 8 Band Parametric EQ per channel Output Delay 100ms per channel Output Protection DC, VHF, and AC Mains Protection, Over-temp and Current Limiter, fan fault detection Limiting Peak Voltage and RMS Voltage Load Monitoring Realtime Load Monitoring and Pilot Tone Detection from Internal or External Sources CONTROL, MONITORING, NETWORK Network Connectivity Wi-Fi or 100MB Ethernet with PoE or Built in Wi-Fi Access Point (IEEE 802.11 b/g/n WPA, WPA2, WEP) User Interface Web Browser User Interface, 3rd Party API control, Cloud Control, or SharkWare Operating Systems MAC, iOS, PC, Android Event Reporting User Downloadable and Viewable Event and Fault log - POE allows for enhanced error monitoring External I/O External I/O In: Toggles Remote On/Off | External I/O Out: Indicates Amplifier Health 4 general purpose Input and Output pins for general input Triggering and output statuses: Coming soon Cloud IoT AWS Cloud based IoT functionality OPS DATA AC Mains 100VAC - 240VAC +/- 15% 50Hz or 60Hz Temperature Storage: -20°C to 90° C - Operating: 0°C to 60° C Power Supply Universal Switch Mode Power Supply Safety Approvals UL, CSA, CE, ETL, FCC, CCC, KETI, NOM, ROHS, PSE PHYSICAL SPECS Dimensions (L x W x H) Product: 11.82” x 8.58” x 1.71” (300.11mm x 278mm x 43.5mm) Shipping: 18” x 11” x 2.75” (457.2mm x 300mm x 69.85mm) Weight 7lbs / 3.1kg | Shipping: Coming Soon Cooling Front to Rear Variable Fan Speed Cooling | Fan Noise at idle is 50dB @ 1m | Fan Noise at 50% is 57dB @1m | Fan Noise at full speed is 63dB @1m Connectors Analog Input: 3 pin Amphenol Anytek, Output: 2 pin Amphenol Anytek, External IO: 8 pin Amphenol Anytek, Power in: IEC, Ethernet RJ45 In for Dante, and RCA input
