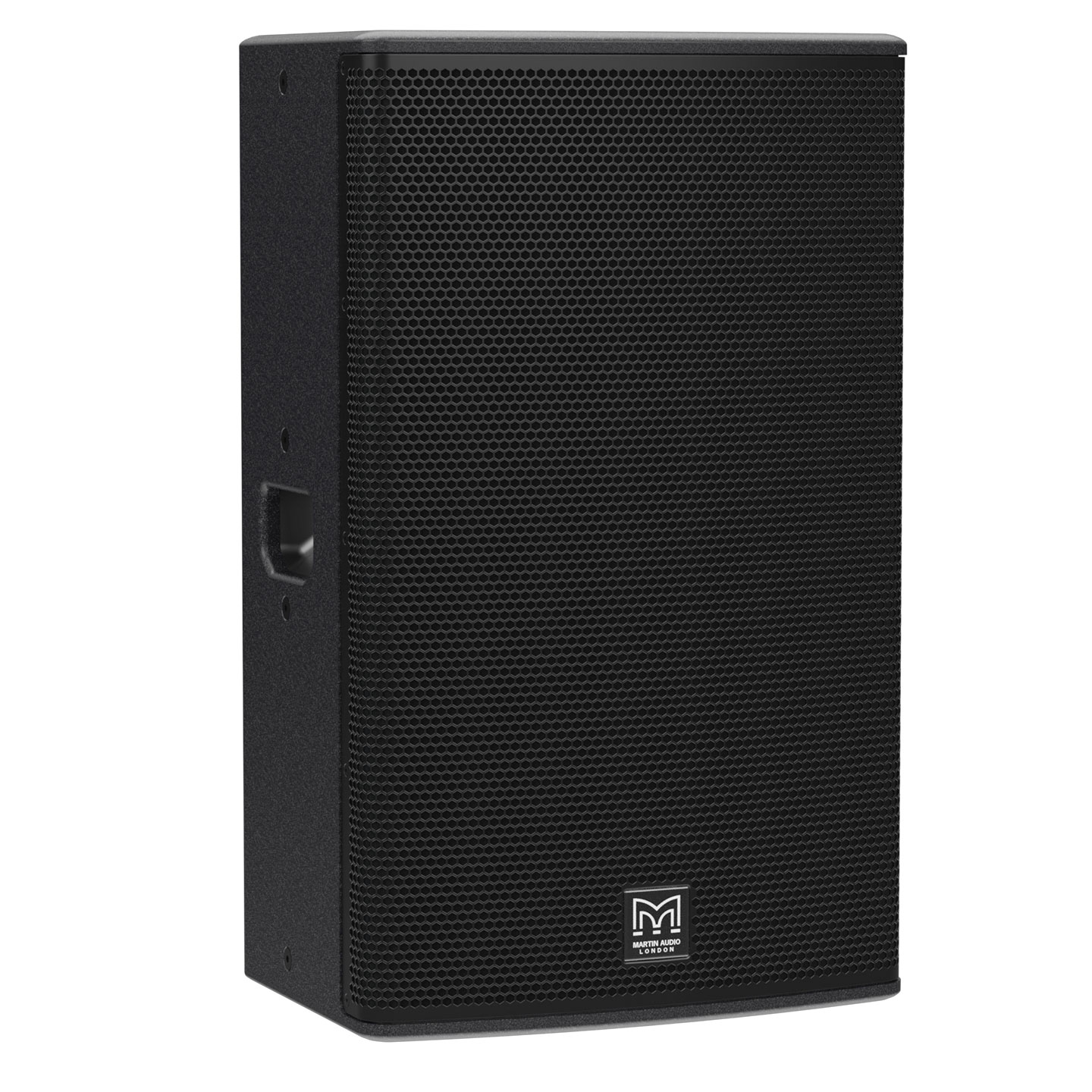

Blackline Q15 is a significant upgrade over its predecessor, delivering enhanced performance and wider coverage, and features a die cast aluminium chassis for improved thermal conductivity and more efficient motor cooling
A passive two way system, Q15 is designed for professional portable applications and installations that demand the ultimate in sonic performance from a single enclosure
Features
Passive two way system
Symmetrical multi angle plywood enclosure
Peak SPL of 133dB (139dB with crest factor 4)
User rotatable Differential Dispersion horn
Dispersion: 70°– 90° horizontal × 50° vertical
Vertical and horizontal orientation
Screw tight, cloth backed perforated steel grille
Integrated ergonomic handle made from recycled ABS
Pole mount cover maintains clean lines
8O nominal impedance
Two NL4 connectors
Flexible mounting options via M8 inserts
FREQUENCY RESPONSE [1] 51 Hz – 17 kHz ± 3 dB, -10 db @ 41 Hz
DRIVER (LF) 15” (380 mm) with 4” (100 mm) voice coil, ferrite motor system
DRIVER (HF) 1.4" (35 mm) exit compression driver with 3" (75 mm) voice coil
RATED POWER 800 W AES, 3200 W peak
REQUIRED ELECTRONICS Processor and amplifier, or a combined amplifier-processor unit
RECOMMENDED ELECTRONICS DX0.4, DX0.6 or DX4.0 system processor and VIA amplifier, or iKON
amplifier-processor
SENSITIVITY 98 dB
MAXIMUM SPL 127 dB continuous, 133 dB peak, 139 dB peak with crest factor 4
NOMINAL IMPEDANCE 8 ohm
DISPERSION Dispersion: 70°–90° (horizontal) × 50° (vertical)
User-rotatable Differential Dispersion horn
CROSSOVER 1.5 kHz passive
ENCLOSURE Symmetrical multi-angle plywood
FINISH Black textured paint
GRILLE Black perforated steel grille with scrim cloth backing
CONNECTORS 2 x NL4 connectors
PIN CONNECTIONS (INPUT) 1+/1–
PIN CONNECTIONS (LINK) 1+/1– to 1+/1– and 2+/2– to 2+/2–
FITTINGS 18 x M8 inserts, 6 x M8 inserts for wall bracket
2 x pocket handles made from recycled ABS
Pole-mount socket with removable cover
DIMENSIONS (W) 420 mm x (H) 695 mm x (D) 400 mm
WEIGHT 33.8 kg
ACCESSORIES (OPTIONAL) Wall bracket WB15
M8 eye bolt HTKCT05, yoke, transit cover
