For applications that typically require a throw between 15-30m, a full blown line array is not always practical, optimal or affordable. Conversely, a point source solution may not be sufficient in coverage and SPL. TORUS is a constant curvature array, designed to fill that gap perfectly, combining optimised coverage, SPL and cost efficiency

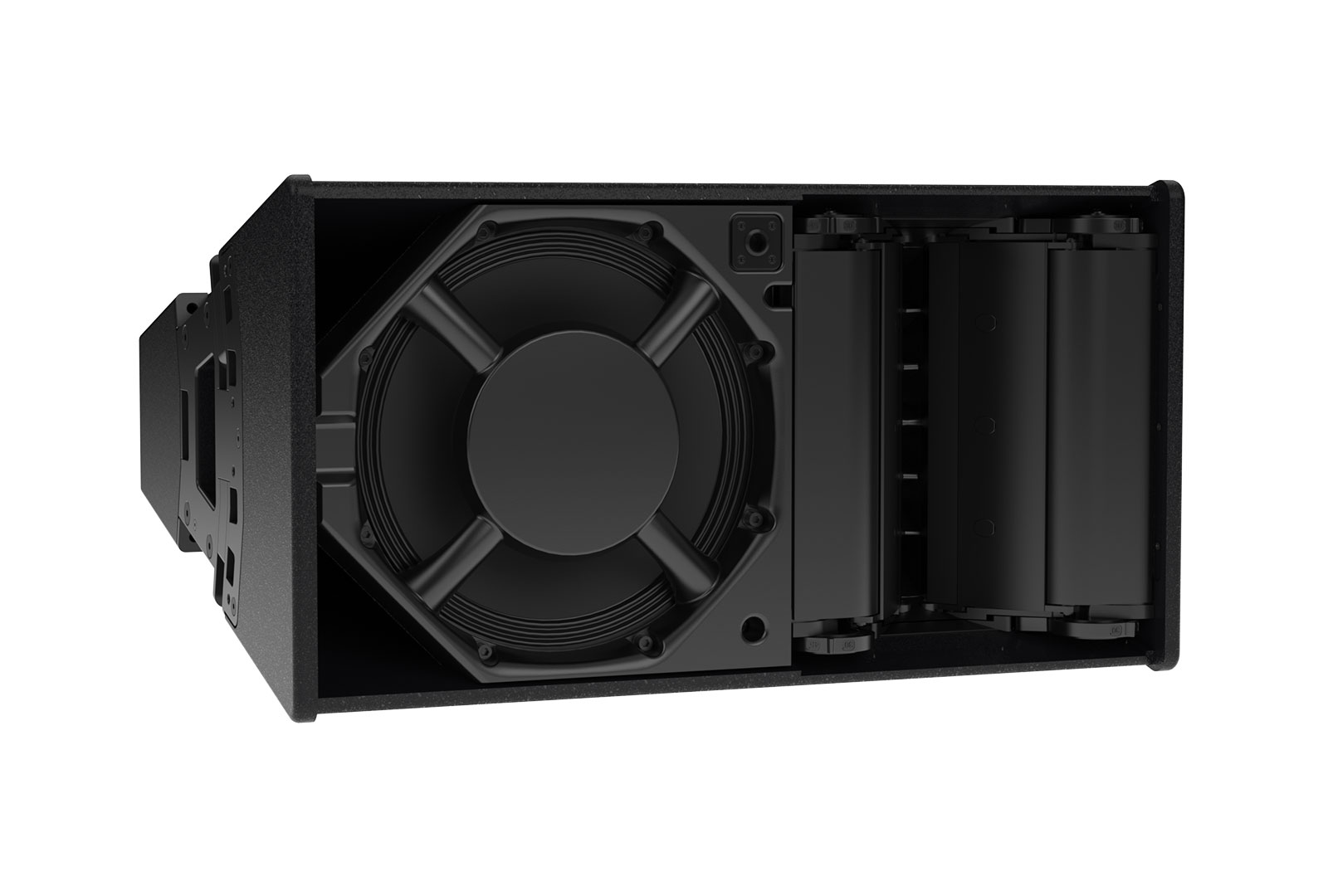

T1230 offers a vertical pattern of 30° with a flexible horizontal pattern that can be manually adjusted between 90°, 60° or 75° (Asymmetrical) via the Dynamic Horn Flare™
Features
1 x 12” (300mm), & 3 x 1.4” (35mm) HF drivers
Passive fixed angle array cabinet of 30° vertical dispersion pattern
Manually adjustable Dynamic Horn Flare™ (between 60°, 90° or 75° Asymmetrical) for flexible horizontal pattern
Phase plug for increased mid band sensitivity
Optimised coverage via DISPLAY 3 and powered by iKON amplifiers
Plug and play system, quick set-up and easy rigging
Applications
Optimised for short to medium throw live sound and installation applications
Fills, distributed systems, and centre clusters
Specifications
TYPE Passive 2-way Constant Curvature 30° enclosure
FREQUENCY RESPONSE (WITH IKON SETTINGS) ± 3dB @ 65Hz, -10dB @ 50Hz
DRIVERS LF: 12”, 3” Voice Coil, Neodymium
HF: 3 x 1” exit, 1.4” Voice Coil, HT Polymer dome neodymium compression driver
SENSITIVITY (2.83V 1m free-field) 99dB
NOMINAL IMPEDANCE 8 ohms
RATED POWER AES 400W, PEAK 1600W
MAXIMUM SPL (SYSTEM) 126dB continuous, 132dB peak*
DISPERSION 60-75-90° horizontal, 30° vertical
PIN CONNECTIONS (INPUT) 1+/- or 2+/-
PIN CONNECTIONS (LINK) 1+/- and 2+/-
DIMENSIONS (W) 650mm, (H) 350mm, (D) 442mm
WEIGHT 26kg
*Martin Audio continues to specify a crest factor of 2 with 6dB between peak and continuous which best mirrors real-world performance. Simply add a further 6dB for comparison with manufacturers quoting a crest factor of 4 ie. 12dB between continuous and peak.
