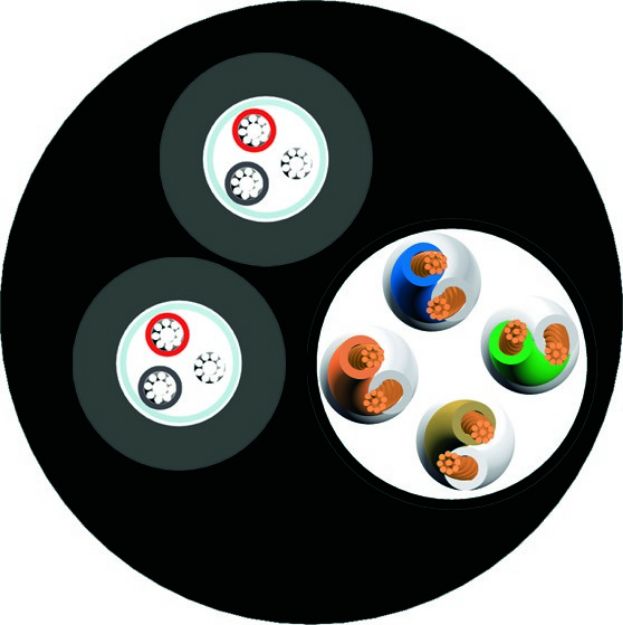

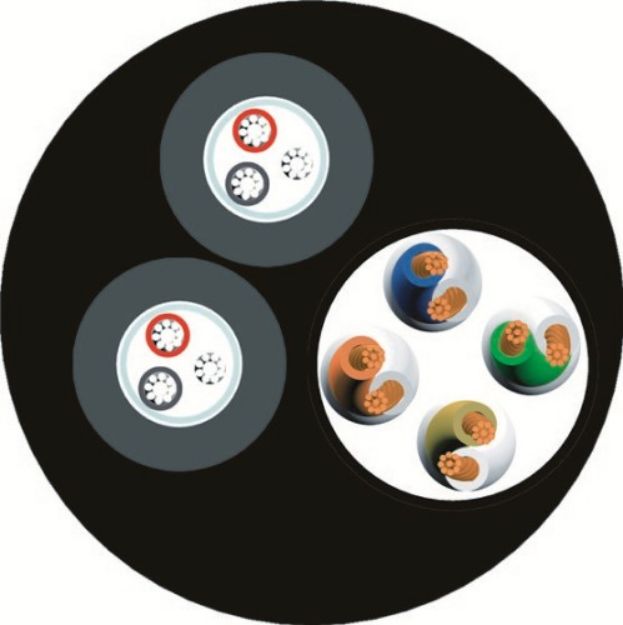

New professional hybrid cable, combining aluminium mylar foil shielded two digital audio AES/EBU 110 Ohm pairs (compatible with the analog signal) and a CAT. 5e S-FTP cable with double shielding made of aluminium mylar foil and a tinned copper braid. The three inner cables are individually insulated and the outer sleeve is manufactured from soft PVC.
TECHNICAL SPECIFICATIONS
Application fields: Control DMX Lighting console / Self powered loudspeaker / Mobile application
Conductors: Cat. 5e S-FTP: 24 AWG = 7 x 0.20 mm (0.22 mm2)
Audio pairs: 24 AWG = 28 x 0.10 mm (0.22 mm2) Bare copper
Insulation: Cat. 5e S-FTP: PVC Ø 7 mm
Audio pairs: PVC Ø 2.70 mm
Shield: Cat. 5e S-FTP: Alu-mylar foil 100% - Tinned copper braid >80%
Audio pairs: Al-mylar foil 100%
Drain wire: 24 AWG = 7 x 0.18 mm (0.22 mm2) Tinned copper
Jacket: Soft PVC compound Ø 14.10 mm
Colour: Black
Electrical resistance: 88 Ohm/Km (conductor) @ 20°C
Electrical capacitance: 48 pF/mt (conductor/conductor) @1 KHz
Nominal Impedance: 110 Ohm (Audio pair)
Working tension: Audio pair
< 50 V AC
< 75 V DC
Operating temperature: -20°C/+70°C
Weight: 260 Kg/Km
Minimum bending radius: 25 mm
Packaging: 200 m wooden reel
